Building a Secure Boot Loader from Scratch — BIOS, Assembly, and Password Lockout

See Also:

• Full source code: SentinelDOS bootloader on GitHub
• QuantumVault system architecture: Project overview
• Watch the bootloader in action: ▶️ YouTube Demo

Project Summary

This post documents the construction of a BIOS-compatible x86 boot loader written entirely in 16-bit assembly. Unlike most tutorials, this project implements a two-stage loader with password-based lockout, forming the secure base for the QuantumVault cold storage system.

🔧 Why Build a Boot Loader?

• To fully control a system from the first CPU instruction
• To understand BIOS memory layout, MBR structure, and CHS addressing
• To build a secure cold boot decryption system without any OS, runtime, or file system

🧠 Core Technical Features

✅ Stage 1: MBR Boot Loader (512 bytes)

• Runs at 0x7C00 after BIOS loads first sector
• Sets up segment registers and stack
• Prints welcome message via INT 10h
• Parses partition table to find active entry
• Loads Stage 2 using INT 13h (CHS mode)
• Passes geometry and drive info via real-mode shared memory

✅ Stage 2: Authenticated Loader

• Loaded into RAM at 0x2000:0000
• Prompts for password input using INT 16h
• Verifies against hardcoded string
• Allows 3 attempts only — then locks system
• If correct, chains to FreeDOS system or AES decryption payload

✅ Security Mechanisms

• BIOS interrupt vector usage only (no OS calls)
• No reliance on FAT/FS — raw disk read via CHS
• Memory-passed parameters for clean transition
• Infinite loop lockout after failed attempts
• Assembly routines for hex display and keystroke handling

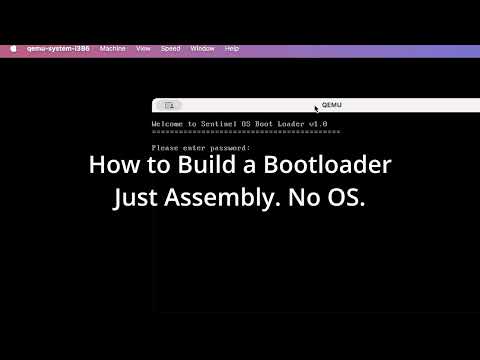

🖥 Bootloader Execution Video

🔍 Key Technologies and Concepts

🧪 Development Workflow Summary

1. stage1.asm assembled into 446 bytes of MBR, leaving partition table untouched
2. stage2.asm placed in sectors following MBR (sector 2 onward)
3. Boot image prepared using dd to inject both stages into a FreeDOS disk
4. Boot validated via QEMU:

   nasm -f bin stage1.asm -o stage1.bin
   nasm -f bin stage2.asm -o stage2.bin
   dd if=stage1.bin of=freedos.img bs=446 count=1 conv=notrunc
   dd if=stage2.bin of=freedos.img bs=512 seek=1 count=2 conv=notrunc
   qemu-system-i386 -drive file=freedos.img,format=raw


📆 What’s Next

More technical posts will follow to expand on CHS vs. LBA loading, stage 2 enhancements, and real-mode memory security. But for now, this bootloader demo stands alone as a clean, minimal, and auditable real-world implementation.

Stay curious, and keep digging down to the metal.
